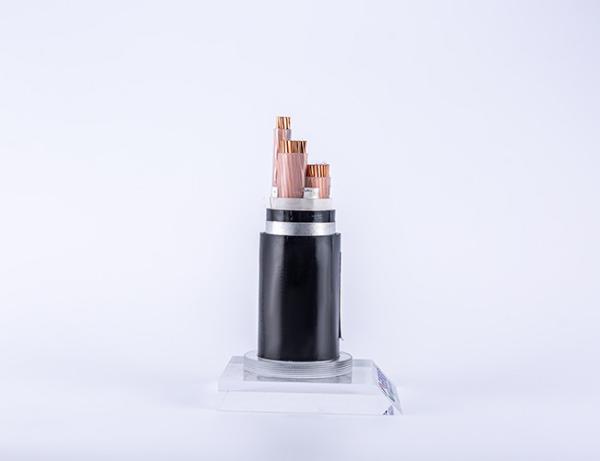

4 Core Power Cable 6 10 12 KV Underground Electricity Transmission
These cables are used for electricity supply in low voltage installation system, they are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants.
Standard:
IEC60502,and BS6346, VDE, AS/NZS, UL,etc or as customer's request.
The Rated Voltage(kv):
1st class 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35
2nd class 1/1 3/3 6/6 8.7/10 12/15 18/20 - 26/35
Packaging

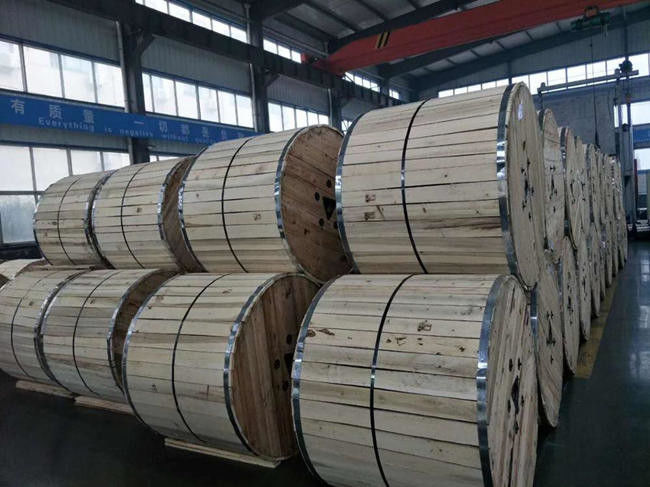

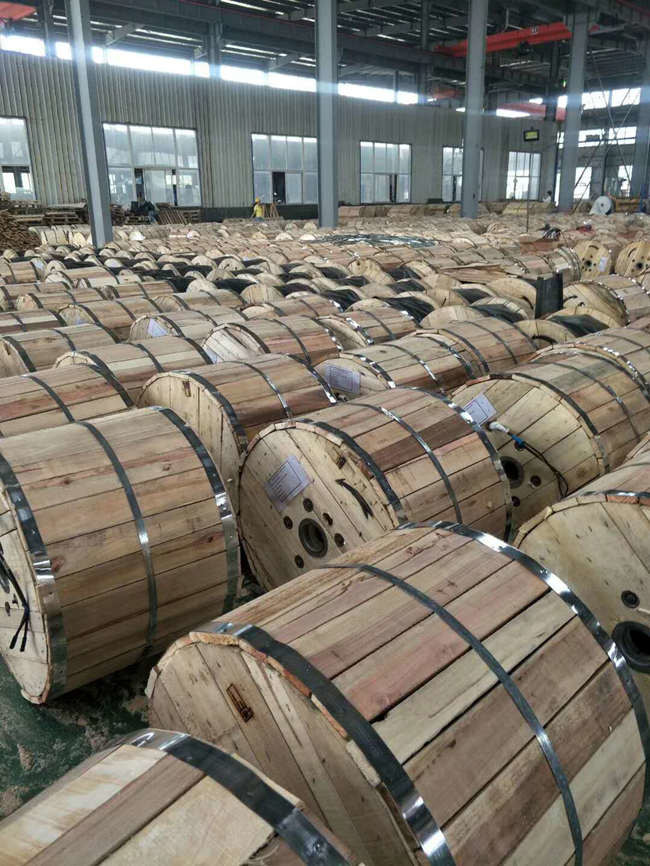

Packing Details : Packing in wooden drum, iron-wooden drum or as customer's requirement.
Delivery Details : 15-25 days after place an order.
| TYPE | NAME | Main Application |
| CU core | AL core | | |
| YJV/YJY | YJLV/YJLY | XLPE insulated,PVC/PE sheathed power cable | For laying indoor ,tunnel,canal and underground.
Unable to bear external mechanical forces,
but bear the traction force during laid |
| YJV22/YJV23 | YJLV22/YJLV23 | XLPE insulated,steel tape armored,
PVC/PE sheathed power cable | For laying indoor ,tunnel,canal and underground.
Able to bear external mechanical forces,
but unable to bear large pulling force |
| YJV32/YJV33 | YJLV32/YJLV33 | XLPE insulated,thin steel wire armored,
PVC/PE sheathed power cable | For laying in shaft,water underground will large difference of level.
Able to bear external mechanical forces and moderate pulling force |
| YJV42/YJV43 | YJLV42/YJLV43 | XLPE insulated,thick steel wire armored,
PVC/PE sheathed power cable | For laying in water and seabed.
Able to bear positive pressure and pulling force |
Q : What's the cable MOQ?
A : Different type cables with different MOQ.
Q : How to check the sample cable quality?
A : Our cable products are ISO, CE & CCC certificated. We offer 18 months quality guarantee, best price and standard quality.
Q : What's the payment term?
A : We accept T/T, L/C, etc.It's negotiable in case of order
Q : What's the delivery time?
A : We have cables in stock. Delivery time based on the cable order type and quantity.
Q : What's your packing?
A : Wooden drum, steel wooden drum, steel drum, flexible packing, etc.
Q : What's the delivery method?
A : By sea, by road, by railway, by air, by DHL, etc
Q:What's the standard of your products?
A:Our products are comply with the GB,IEC,ASTM,DIN,BS standard etc.We can also produce according to our customer's special requirement.
Q: How can I get the samples?
A:It's our pleasure to offer you the samples .We'd like to supply samples according to your requirement.
